Removing Refrigerant Pipe/Hose; Condenser - Member

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

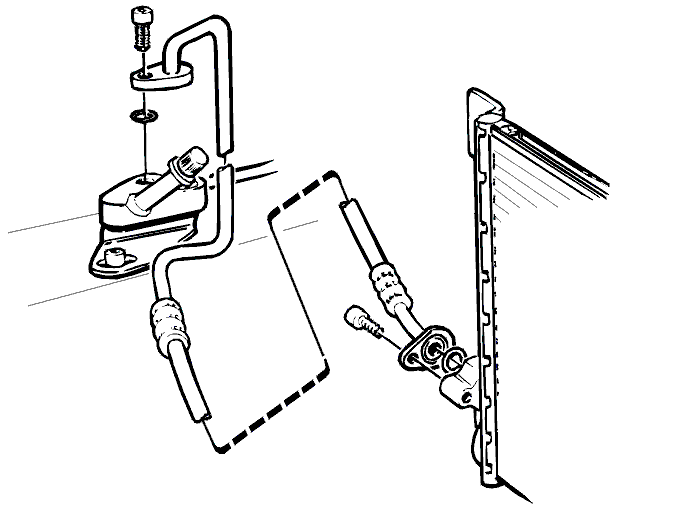

Fig 1: Identifying Air Baffle And Condenser Pipe/Hose

Courtesy of VOLVO CARS OF NORTH AMERICA.

Read Before starting work on the refrigerant circuit .
Drain the system of refrigerant, according to Refrigerant, overview and Emptying/vacuum pumping/filling with refrigerant .
Disconnect pipe/hose from its connector on the member.
Raise the car.
Remove air baffle.
Disconnect pipe/hose from condenser.
