Removing Refrigerant Pipe/Hose; Member - Evaporator

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

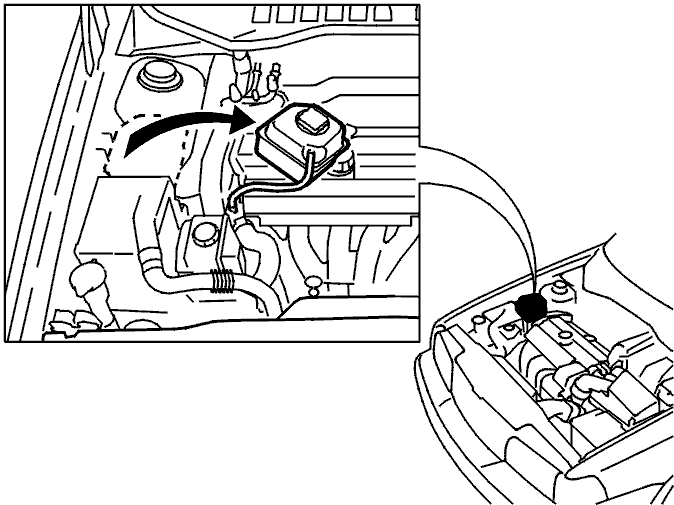

Fig 1: Identifying Control Module Box Fresh Air Intake Hose And Exhaust Hose

Courtesy of VOLVO CARS OF NORTH AMERICA.

Drain the system of refrigerant, according to Refrigerant, overview and Emptying/vacuum pumping/filling with refrigerant .
Read Before starting work on the refrigerant circuit .
Remove control module box fresh air intake hose and exhaust hose.

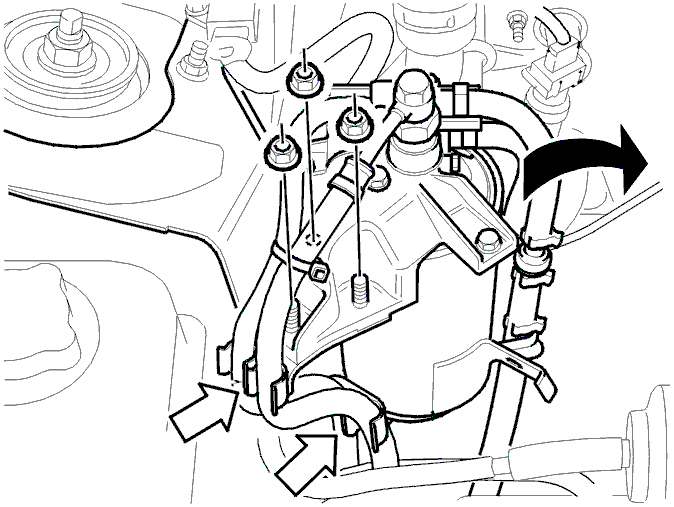

Fig 2: Identifying Fuel Filter With Bracket

Courtesy of VOLVO CARS OF NORTH AMERICA.

Diesel engines:

Remove fuel filter with bracket.

Fig 3: Identifying Expansion Tank

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove expansion tank.

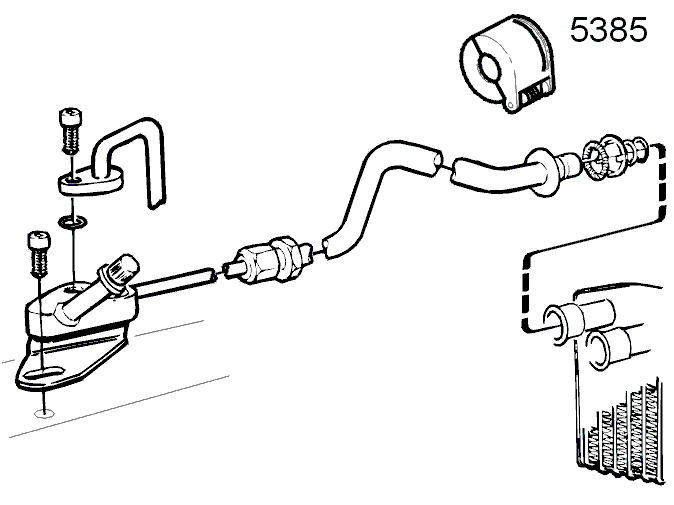

Fig 4: Identifying Condenser Pipe/Hose, Pipe From Member And Pipe From Evaporator

Courtesy of VOLVO CARS OF NORTH AMERICA.

Disconnect condenser pipe/hose from its connector on the member.
Disconnect pipe from member.
Disconnect pipe from evaporator with wrench 9995385 .
