Work In the Passenger Compartment
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the electronic climate control module. See Replacing ECC Control Module
- Disconnect control module box fresh air intake hose.
- Remove the manual climate control module. See Replacing Or Adjusting Control Cables/Mechanical Rear Section And Control Panel/Front Section (Manual Climate Control/STANDARD)
- Disconnect control module box fresh air intake hose.
- Remove the dashboard. See Dashboard
. Remove the center console. See Center console
- Disconnect control module box fresh air intake hose.
- Right-hand drive car:
- disconnect control module box fresh air intake hose.
- Remove floor carpet mountings.
- Remove the cable tie straps to expose the passenger side floor duct pipe

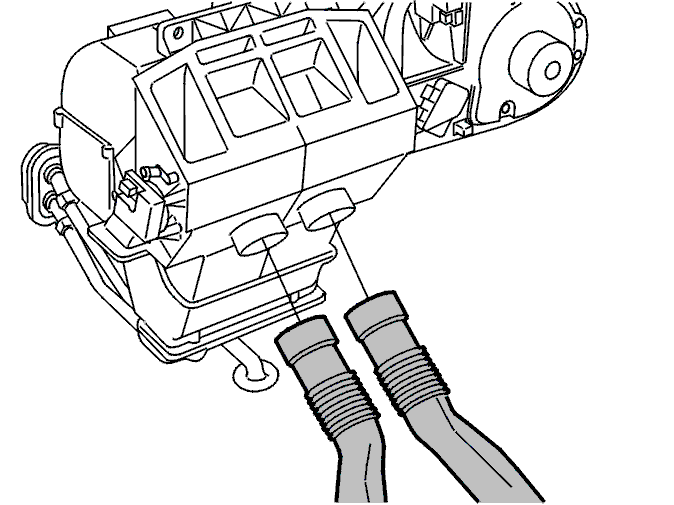

- Disconnect the floor duct pipes from the climate control unit
- Also remove the RTI (road traffic information) or amplifier bracket
- Remove the RTI (road traffic information) member with its mounting on the cowl side on the passenger side
- Remove the knee bolster if applicable.

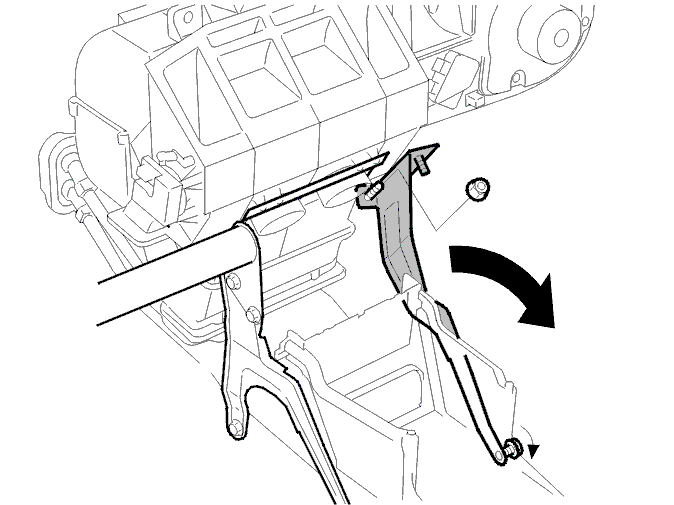

- Remove the nut, remove the screw and fold back the bracket on the passenger side
- Disconnect the drain hose from the floor.
- Remove the vacuum regulator for the cruise control.

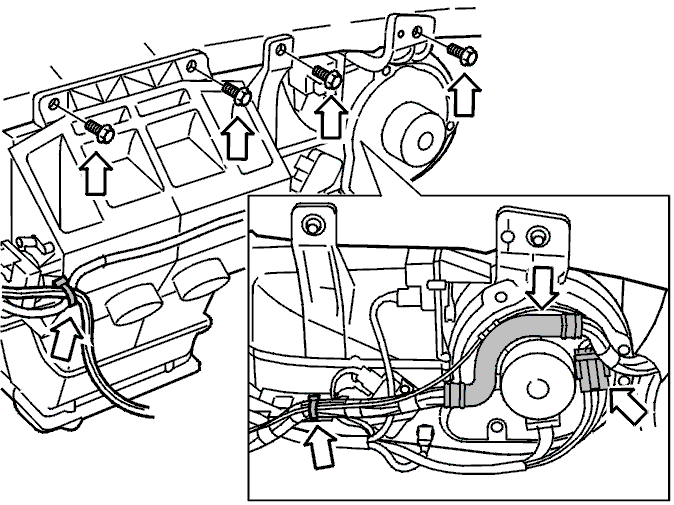

Fig 5: Identifying Cable Duct, Connector, Cable Harnesses, Climate Control Unit Screws And Climate Control System
- Remove the cable duct from its mounting on the blower fan motor
- Remove and disconnect the connector
- Remove the cable harness from the bracket (was relay base)
- Remove the cable harness from tie straps on the air distribution housing
- Remove the climate control unit screws
- Remove the climate control system.
