Work In the Engine Compartment
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
- First read section Before Starting Work On The Climate Control System
- Disconnect the battery lead

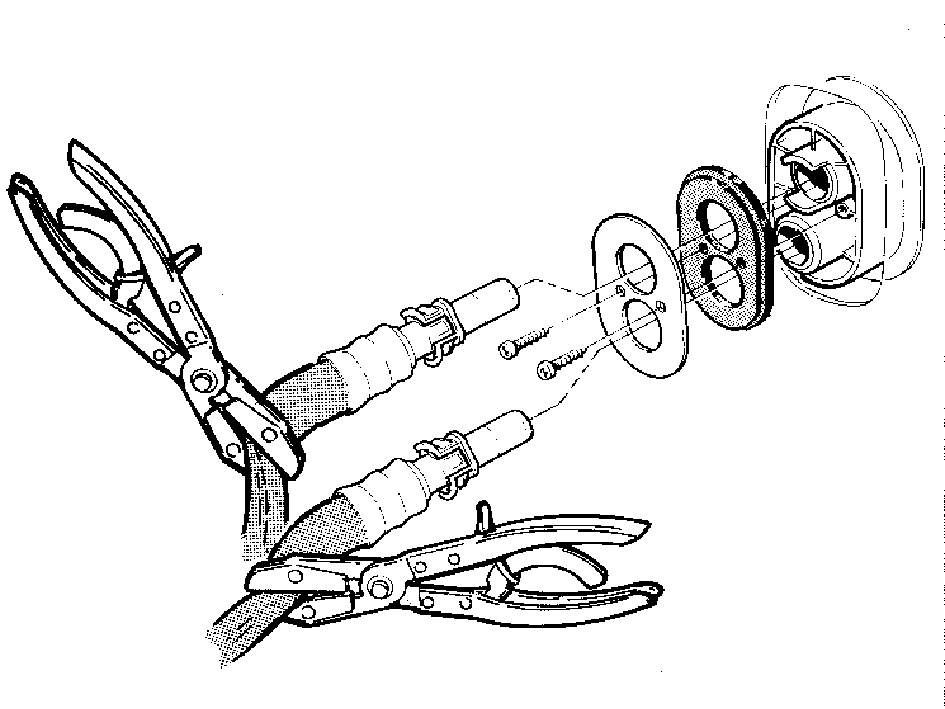

- Clamp the hoses. Use lock grip pliers 1158957
- Disconnect the heater hoses from the heat exchanger by pressing in the hose connector, pressing together the catch and pulling out the hose
- Plug the pipes for the heat exchanger
- Remove cover plate and rubber seal for lead-in.
- Remove the windshield wiper. See Removing
- Remove the gutter. See Removing Panel
- Also remove the pollen filter
- Remove the holder.
