Installing the Heater

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

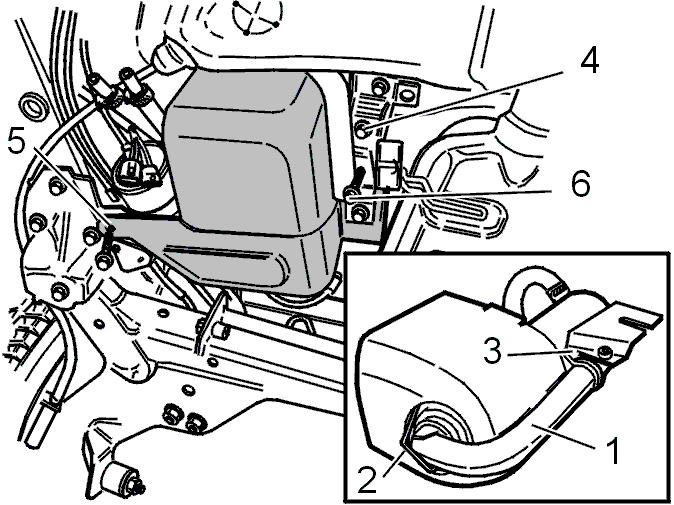

Fig 1: Identifying Air Intake Hose, Clamp, Spring Mounting, Floor And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Secure the air intake hose (1) with the clamp (2) and spring mounting (3)
Insert the heater between the muffler mounting and floor (4), and screw (5)
Install the screw (6)
Tighten all the screws.
NOTE: Check that the air intake hose has an airtight seal with the heater.

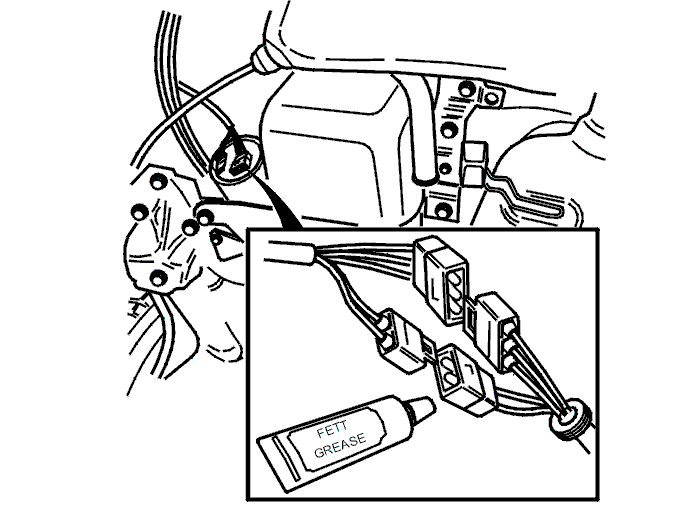

Fig 2: Identifying Electrical Terminals

Courtesy of VOLVO CARS OF NORTH AMERICA.

Assemble the electrical terminals.

Assemble the exhaust pipe from the heater and muffler.

Secure the coolant hoses. Remove the lock grip pliers.

Connect the fuel line to the fuel pump (FP). Tighten the fuel line carefully using a ring wrench.

NOTE: Use a counterhold.
