Replacement Of Water Pump: Removal:

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

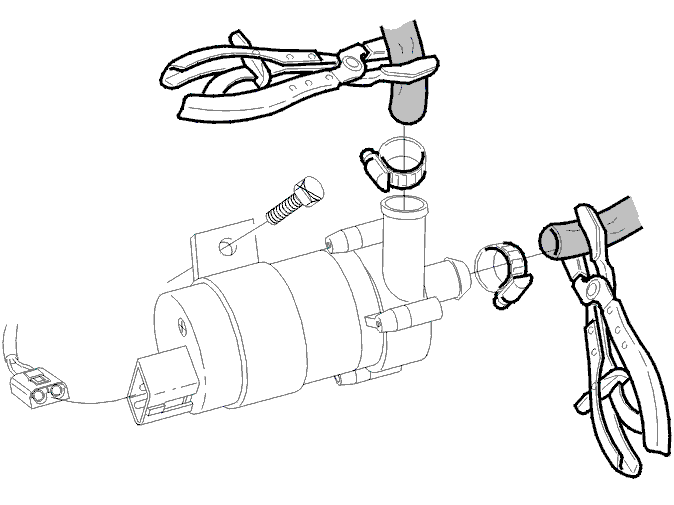

Fig 1: Identifying Water Hoses And Clamps

Courtesy of VOLVO CARS OF NORTH AMERICA.

Clamp down the water hoses
Loosen the clamps to the water hoses
Separate the socket and loosen the hose clamp.
