Installing the Engine Coolant Hoses

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Secure the wiring on the heater and water pump
Secure the wiring on the pipes
Clamp the wiring, secure the clamps using rivets.

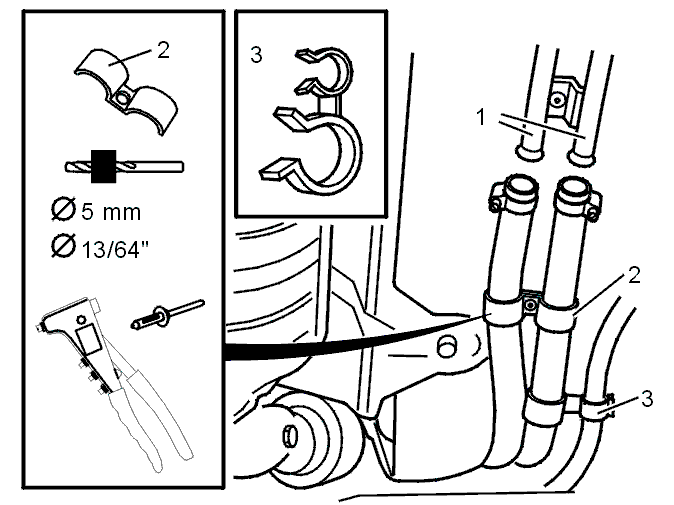

Fig 1: Identifying Spacer Clamp On Right-Hand Hose

Courtesy of VOLVO CARS OF NORTH AMERICA.

Secure a spacer clamp on the right-hand hose and on the nearest fuel line.
