Moving the Heater To Its Service Position: Removing: Heater

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

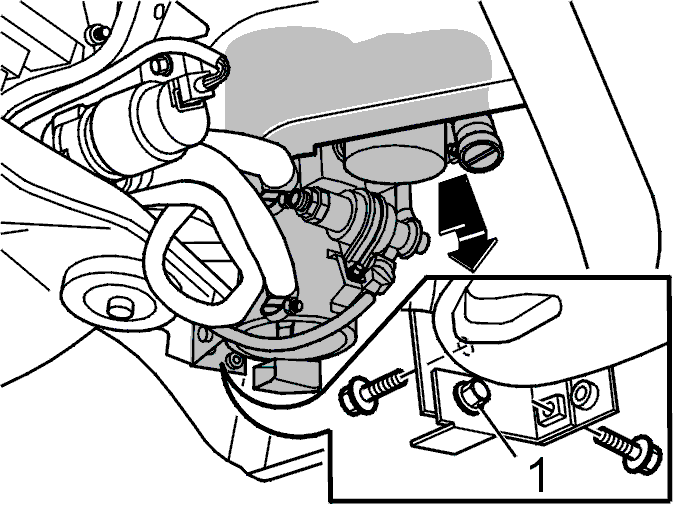

Fig 1: Identifying Screw Holding Heater To Bracket And Screw Holding Heater To Sub-Frame

Courtesy of VOLVO CARS OF NORTH AMERICA.

Slacken off the screw (1) slightly.

Remove the screw holding the heater to the bracket and the screw holding the heater to the sub-frame.

Lift the heater upwards/outward to release it from the bracket at the top. (The top of the heater is hooked onto the bracket.)

Move the heater downwards/forwards and let it hang in the engine coolant hoses.

NOTE: Differences in the heater mounting can occur on earlier cars.
