Connecting Breakout Box To MCC Control Module

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

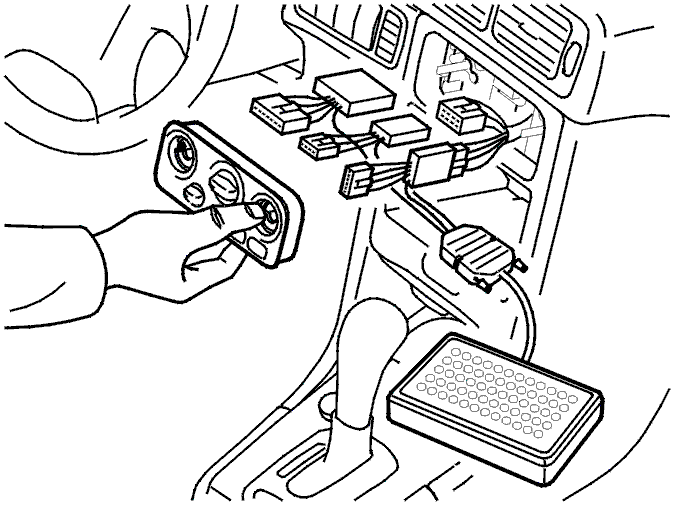

Fig 1: Identifying MCC Control Module And Connectors

Courtesy of VOLVO CARS OF NORTH AMERICA.

Ignition off.
Expose MCC control module according to Replacing Or Adjusting Control Cables/Mechanical Rear Section And Control Panel/Front Section (Manual Climate Control/STANDARD) .
Disconnect control module.
Check the control module and control module connectors that the male and female terminals are undamaged and secure (cannot be pressed in) and that the cables to the female terminals are secured to the terminals.
Check the terminals relevant to the diagnostic trouble code (DTC)/symptom especially well. See Signal Descriptions MCC .
Connect adapter 9511463 (22-pin terminal) to the control module connector B (to the wiring) and connect breakout box 9813190 to adapter.
HINT: Control module terminals #B1-B22 are the equivalent of #31-#53 on the breakout box. The control module terminals in connector A are not connected to the breakout box.
The breakout box is designed to facilitate reading off control module in and output signals when the control module is connected and the cable and component resistance when the control module is disconnected. Using a breakout box reduces the risk of accidental short-circuits and damaged connector pins.
