Installing test equipment

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

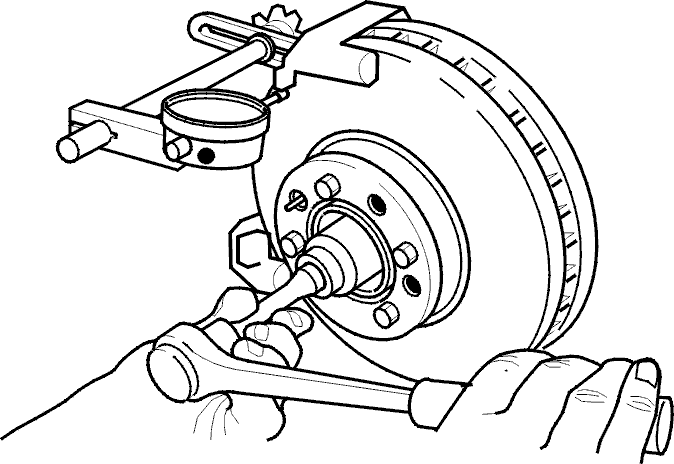

Fig 1: Identifying Test Equipment Installation

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install measurement tool set bracket. Front: Attach bracket to caliper mounting with mounting bolts from bolt set 9995507 .

Rear: Attach bracket to brake caliper mounting lugs with bolts from measurement tool set 9995418 .

Brake disc maximum lateral run-out must not exceed 0.040 mm (0.0016") (brake disc front) or 0.080 mm (0.0031") (brake disc rear).

Remove test equipment.
If brake disc maximum lateral run-out is out of limits, it must be re-turned, if you have a turning tool available, or be replaced. Replacement procedure as per Brake disc front, replacement or Brake disc rear, replacement .

NOTE:

Illustration above shows testing front.
