Installing measurement equipment

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

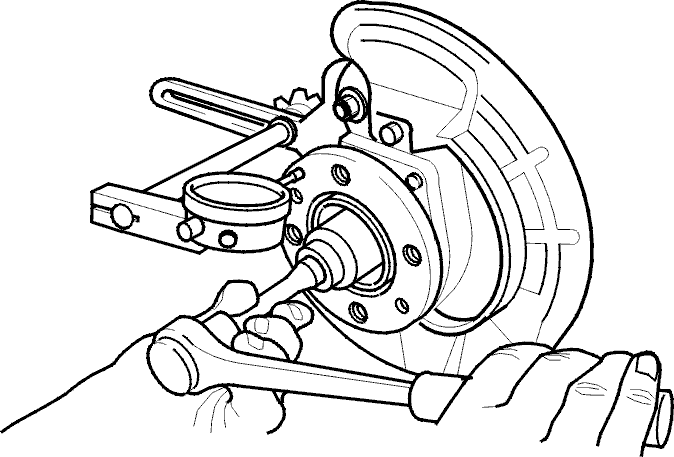

Fig 1: Identifying Measurement Equipment

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install measurement equipment as per illustration above. Illustration shows testing front.
Front: Use M8 bolts, washers and nuts in bolt set 9995507 when installing measurement tool bracket to front brake caliper mounting hole.

NOTE:

Make sure that bracket is not lying against driveshaft gaiter, (front only).

Rear: Use the bolts included in the measurement tool set when installing measurement tool bracket to the rear brake caliper mounting hole.
