Transmission Cable, Adjusting: Preparations

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Air Cleaner (ACL) Housing, Battery Shelf & Battery

Courtesy of VOLVO CARS OF NORTH AMERICA.

Park the car on a flat surface. Do not apply the parking brake.

Remove:

The air cleaner (ACL) housing
The battery
The battery shelf

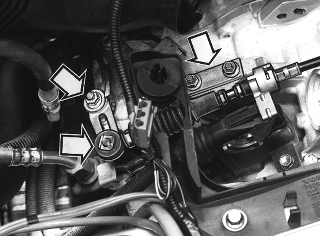

Fig 2: Identifying Circlip & Washer On Lever, Nuts & Washers On Cable Bracket And Gear Cable From Lever

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

Circlip and washer on the lever
Nuts and washers on the cable bracket.
NOTE: There are no washers on late designs.
Gear cable from the lever
