Check the Shift-Lock Override Function

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

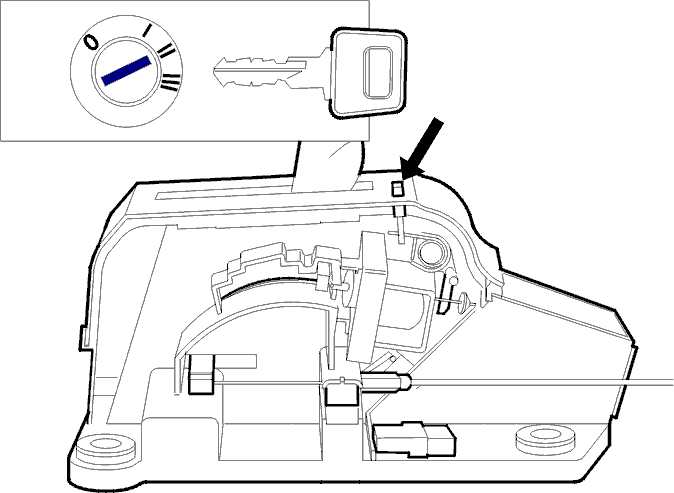

Fig 1: Identifying Gear Shift Lever In P-Position And Ignition Key In Position II
GLL125332Courtesy of VOLVO CARS OF NORTH AMERICA.

Move the gear shift lever to P-position and the ignition key in position I or II.

NOTE: Do not press on the brake pedal.

Press the override button, it should be possible to move the lever from the P-position.

Move the gear shift lever to P-position. Remove the ignition key.

Press the override button. It should not  be possible to move the lever from the P-position. The override function should only work with the ignition key in position I or II.

If adjustment is necessary, see the next item.
