Check the Key Lock Function

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

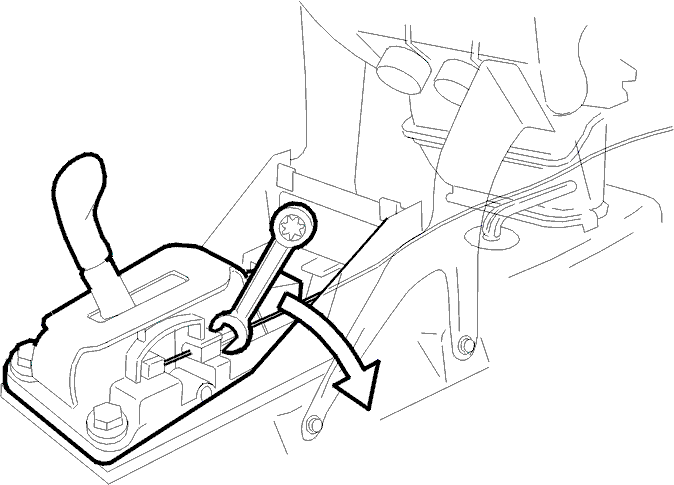

Fig 1: Identifying Gear Shift In P-Position And Cable Adjuster Turning

Courtesy of VOLVO CARS OF NORTH AMERICA.

Move the gear-shift to the P-position

The ignition key should be easy to remove from the ignition switch.

If not the cable is too short . Release a little using the adjuster on the gear selector assembly and check the function again.

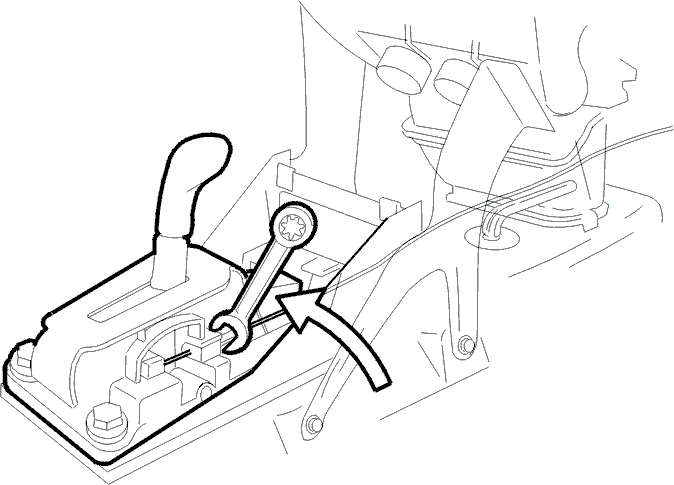

Fig 2: Identifying Cable Adjuster Turning

Courtesy of VOLVO CARS OF NORTH AMERICA.

Set the gear-shift lever in a position other than P.

The ignition key should not be easy to remove from the ignition switch.

If the key can be removed, the cable is too long . Tension a little using the adjuster on the gear selector assembly until the key cannot be removed.
