Basic Cable Setting

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Distance Between Lever Carrier On Cable's End Piece

Courtesy of VOLVO CARS OF NORTH AMERICA.

Set the gear-shift lever in a position other than P.

The distance between the lever carrier on the cable's end piece should be about 7 mm. Adjust using the adjuster on the gear selector assembly.

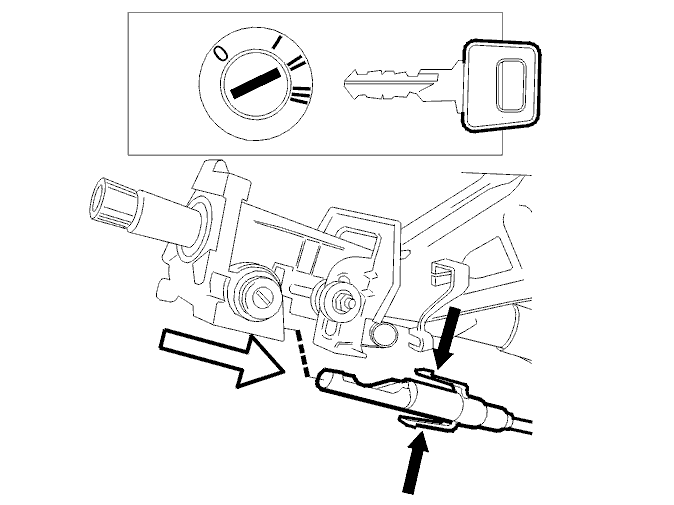

Fig 2: Identifying Ignition Key In Position I Or II

Courtesy of VOLVO CARS OF NORTH AMERICA.

Turn the ignition key to position I or II.

Secure the cable in the ignition switch.

Make sure the cable's locking lugs grip the ignition switch.

Move the gear-shift lever to the P-position. Check that the cable as 0.5-1.0 mm of play to the lever in the gear selector assembly.
