Checking and adjusting: Adjustment

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

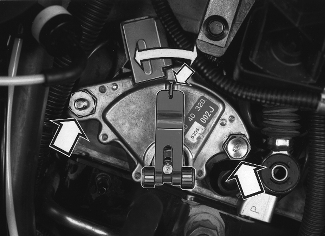

Fig 1: Identifying Dipstick Pipe Bracket And Gear Position Sensor Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

Dipstick pipe bracket
Gear position sensor screws

Rotate the gear position sensor so that the mark on the switch aligns with the groove on the tool. Tighten sensor screws.

Tighten to 25 Nm .

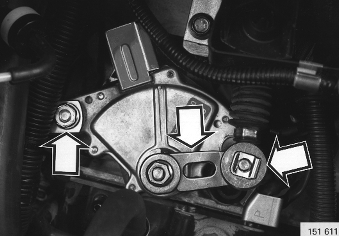

Fig 2: Identifying Gear-Shift Position Sensor

Courtesy of VOLVO CARS OF NORTH AMERICA.

Reinstall bracket for dipstick pipe.

Make sure that the O-ring on the pipe is in place. Tighten to 25 Nm .

Install:

Lever on gear shift linkage rod. Tighten to 16 Nm .
Transmission cable on lever with a washer and retaining clip. Apply a little grease 1161241-3 to lever pin.

Fig 3: Identifying Air Cleaner (ACL) Housing, Battery Shelf & Battery

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

Air intake manifold
The battery shelf
Battery. Connect cables
