Checking the P Position

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

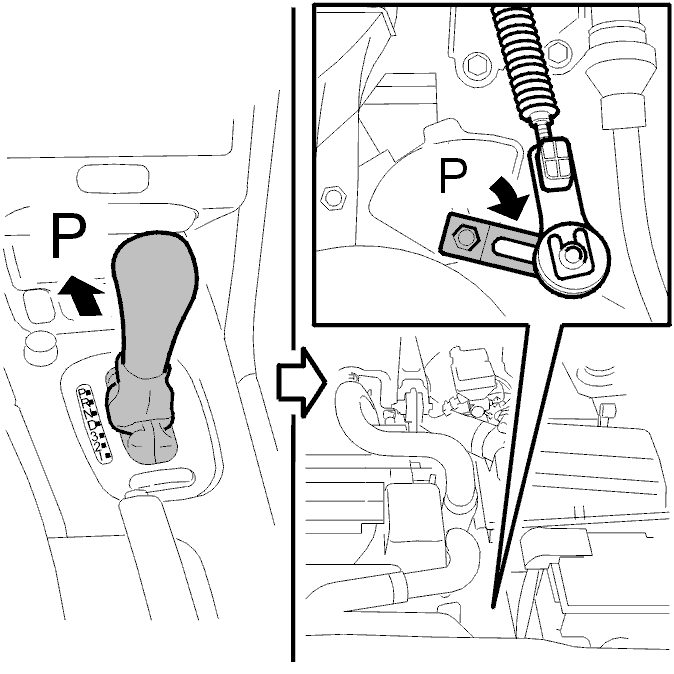

Fig 1: Identifying Gear Selector At Position P
GLL125415Courtesy of VOLVO CARS OF NORTH AMERICA.

Move the gear selector to position P  .

Turn the lever on the transmission to position P (the foremost position).

Check that P position is engaged: Try to roll the car.
