Checking/Replacing Torque Converter

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

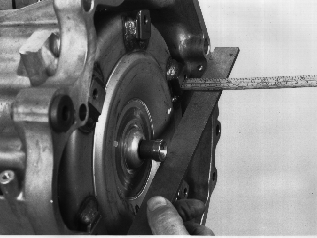

Fig 1: Checking Distance Between Cover & Retaining Tabs With Ruler

Courtesy of VOLVO CARS OF NORTH AMERICA.

Ensure that torque converter cover mating surfaces are clean.
Apply a light coating of grease to torque converter guide studs and in the holes for the guide bushings on the torque converter cover.
Ensure that torque converter is as far into the transmission as possible. Check with a ruler. The distance between the cover and retaining tabs should be approximately 14 mm.
