Removing the control module

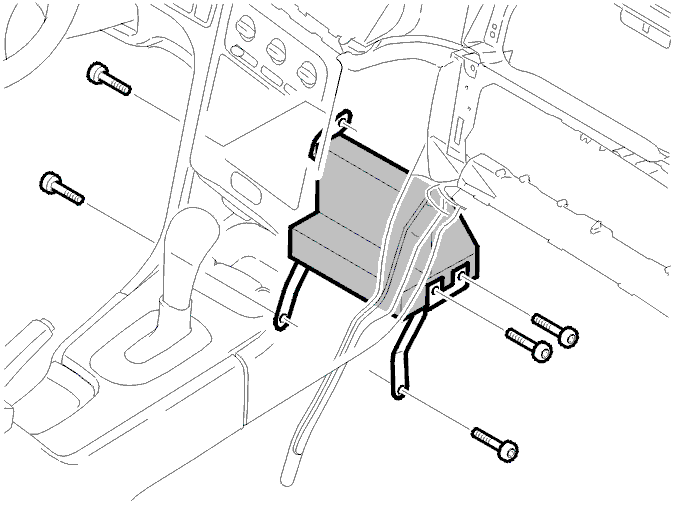

Fig 1: Identifying Control Module Box Fresh Air Intake Hose And Floor Carpet Mountings

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove (on the driver's side):

• the soundproofing panel. See Dashboard
• the carpet bracket.

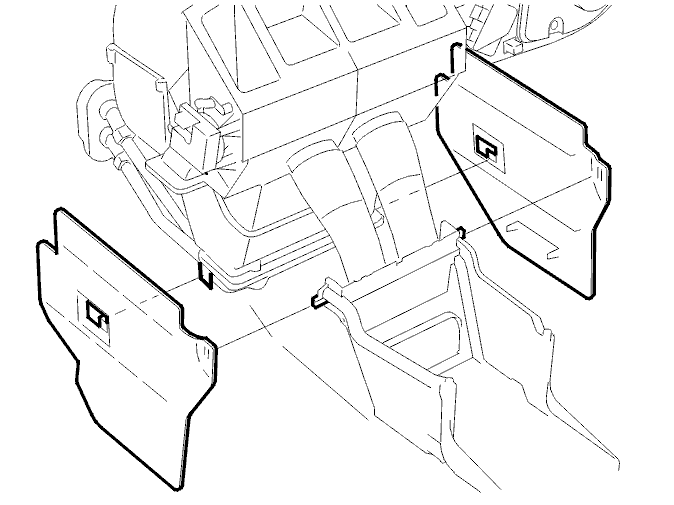

Fig 2: Identifying Heating Unit

Courtesy of VOLVO CARS OF NORTH AMERICA.

• the screw holding the bracket on the heating unit
• the screw holding the bracket on the tunnel.

Remove (on passenger side):

• the glove compartment. See Disassembly
• the soundproofing panel. See Dashboard
• the carpet brace
• the two screws holding the control module on the bracket
• the screw holding the bracket on the tunnel.

Fig 3: Identifying Control Module And Connectors

Courtesy of VOLVO CARS OF NORTH AMERICA.

• position the bracket with the control module towards the tunnel. Lift up the control module at an angle
• the control module on the bracket
• disconnect the connectors.
