Removing TMC receiver

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying TMC Receiver

Courtesy of VOLVO CARS OF NORTH AMERICA.

Ignition off.

Remove:

cover for CD-ROM player in glove compartment
the glove compartment. See Disassembly
the soundproofing panel on the passenger side. See Dashboard .

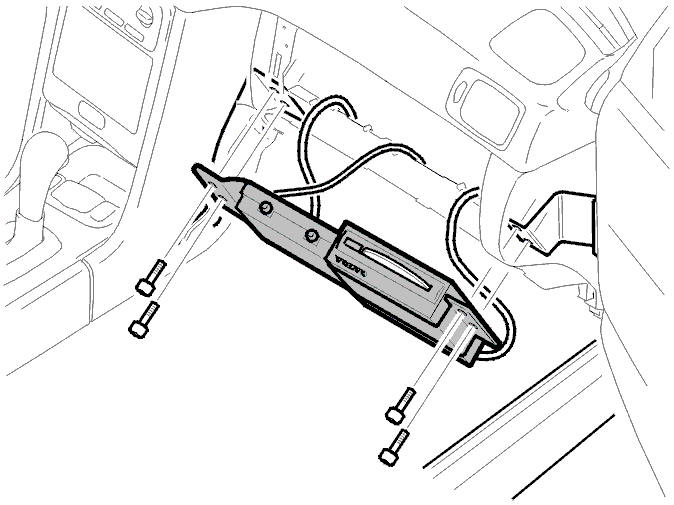

Fig 2: Identifying TMC Receiver, CD-ROM Player, And Bracket

Courtesy of VOLVO CARS OF NORTH AMERICA.

the bracket with the TMC receiver and the CD-ROM player.

Fig 3: Identifying TMC Receiver, Connectors, And Bracket

Courtesy of VOLVO CARS OF NORTH AMERICA.

disconnect the connectors
the TMC receiver from the bracket.
