Bulbs In the Combined Instrument Panel
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
All warning lamps in the combined instrument panel should light up when the ignition is switched on. If they are blown, replace the bulbs.
For the correct type off bulb, see Sensors .

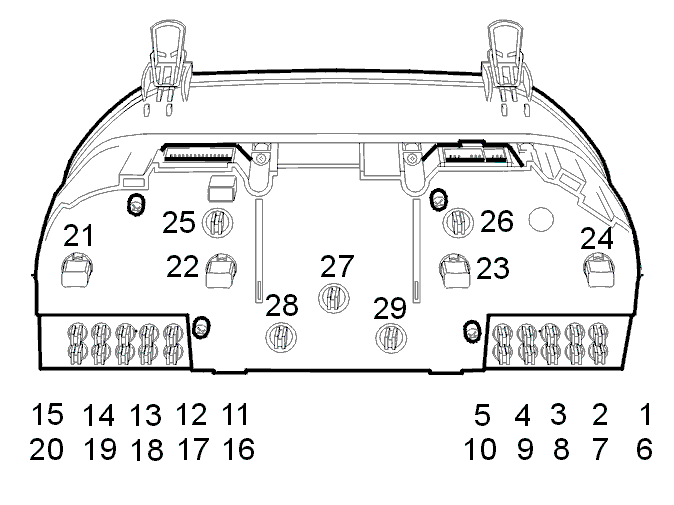

Lamp Position And Function:
| 1 | ROPS or cruise control | 15 | ABS |
| 2 | Low washer reservoir level | 16 | Gear selector indicator |
| 3 | Low fuel level | 17 | Low coolant level |
| 4 | Rear fog lamps | 18 | TRACS |
| 5 | High beam | 19 | Malfunction indicator lamp (MIL) |
| 6 | Tailgate/trunk warning | 20 | Service interval, SRL |
| 7 | Bulb failure warning sensor | 21 | Instrument lighting |
| 8 | Turn signal lamps, trailer, certain markets | 22 | Instrument lighting |
| 9 | ETS warning | 23 | Instrument lighting |
| 10 | SRS | 24 | Instrument lighting |
| 11 | Battery charging | 25 | Turn signal flasher right |
| 12 | Low oil pressure | 26 | Left turn signal flasher |
| 13 | Brake circuit failure | 27 | Trip computer lighting |
| 14 | Parking brake | 28 | - |
