Fitting the Fuel Pump Units

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Fitting the fuel pump units

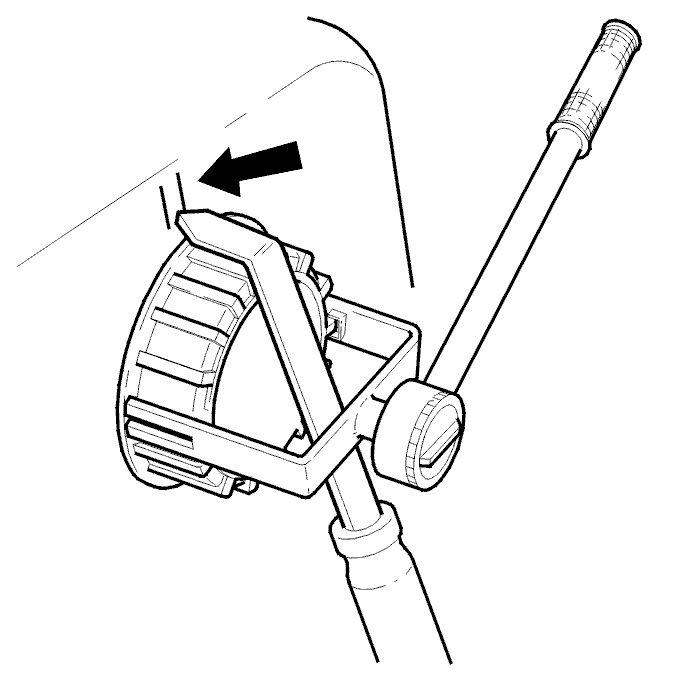

Fig 1: Identifying Pump Unit And Special Tool 9995673

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

new washers
left-hand pump unit
right-hand pump unit

Grease all contact surfaces of the pump units' retaining nuts with Vaseline.

NOTE: Do not apply Vaseline to the nut threads.

Tighten the nuts with 40 Nm . Use special tool 9995673 as a counterhold. The tool's indicator tip must be between the markings on the fuel tank in order for the placement of the pump units to be correct.

NOTE: Make sure the pump units are correctly positioned so that the fuel gauge shows the correct value.
