Engine Coolant Temperature (ECT) Sensor
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
Drain off the coolant.
Remove the thermostat housing (2 TORX40-screws).
Separate the connector.

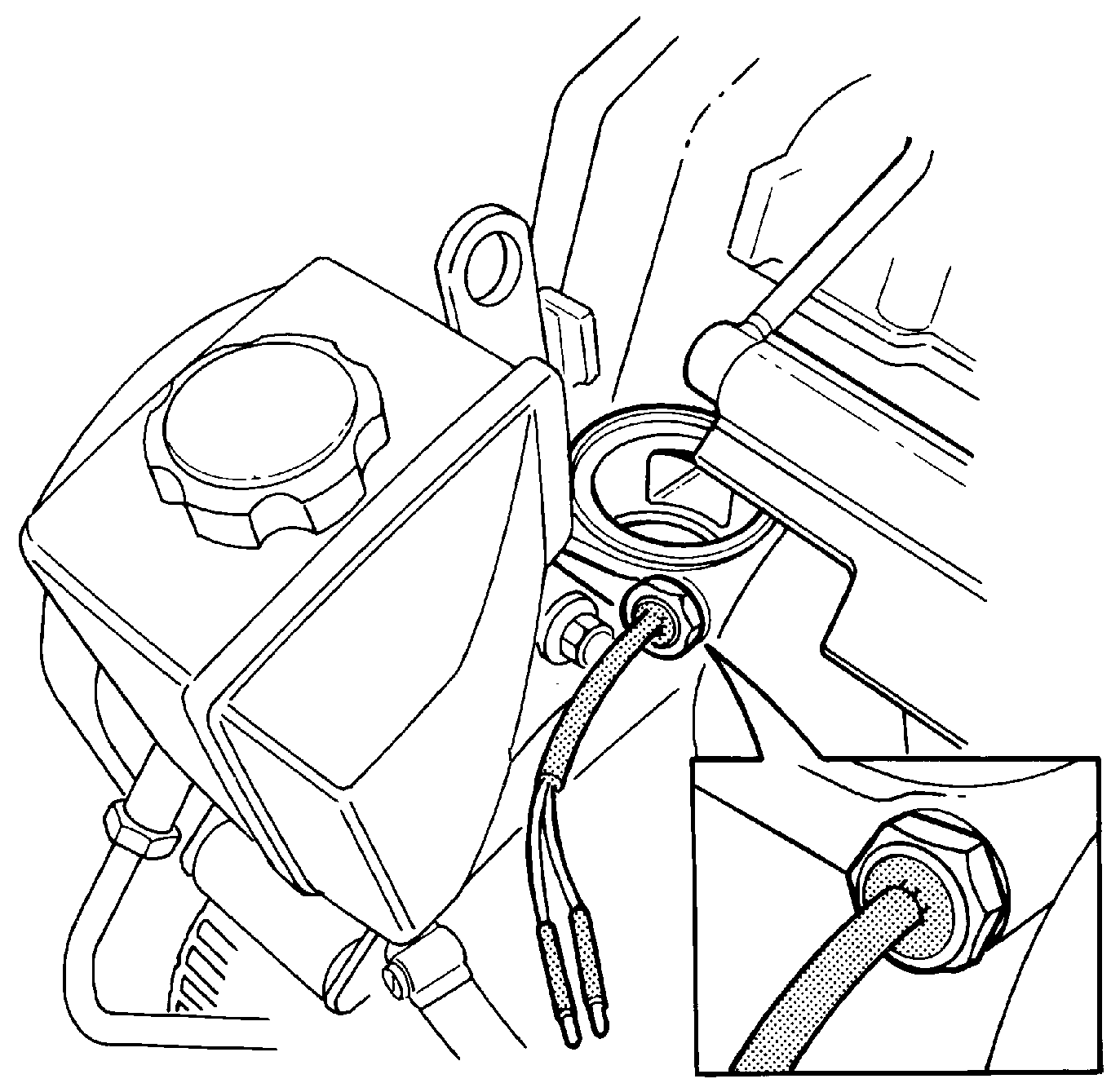

Release the terminal pins from connector (see the illustration) in order to thread the wiring through a ring spanner.
Remove and replace the temperature sensor.
Test the sensor according to the method in the Service Information: Ignition-and fuel injection system.
Assemble in reverse order
NOTE:
Do not forget to top up the coolant, and to run the engine to normal operating temperature and check the level.
