Brake Fluid Level Sensor

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

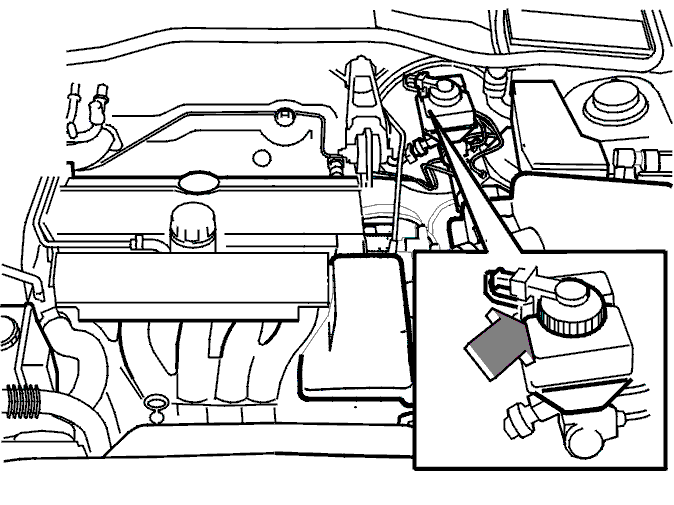

Fig 1: Identifying Brake Fluid Level Sensor Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Disconnect the connector
Unscrew the cover. The sensor is mounted in the cover
Assemble in reverse order.
