Replacing instrument housing: Remove

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

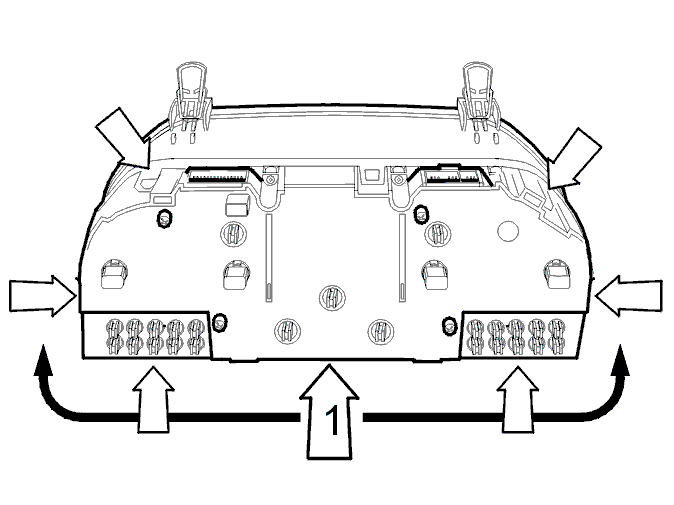

Fig 1: Identifying Reverse Side Of Instrument Housing

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

combined instrument panel from dashboard according to Removing the Combined Instrument Panel .
Turn the combined instrument panel upside down with its reverse facing you.
Release the middle catch and pull out the instrument housing at the same time releasing the remaining catches in order.
