Replacing instrument housing: Installation

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

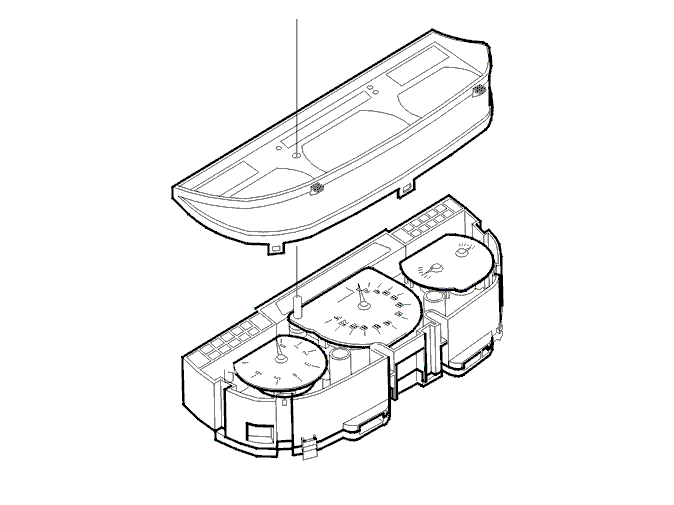

Fig 1: Identifying Instrument Housing And Combined Instrument Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

Place the combined instrument panel on a workbench with the instrument side facing up.
Position the instrument housing on the combined instrument panel and press into place.
combined instrument panel from dashboard in reverse order according to Removing the Combined Instrument Panel .
