Replacing Tachometer, Temperature Gauge, Fuel Gauge And Speedometer: Remove

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Screws For Tachometer, Temperature Gauge, Fuel Gauge And Speedometer

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

instrument housing according to Replacing Instrument Housing .
screws to remove tachometer, temperature gauge, fuel gauge and speedometer.
mounting screws.

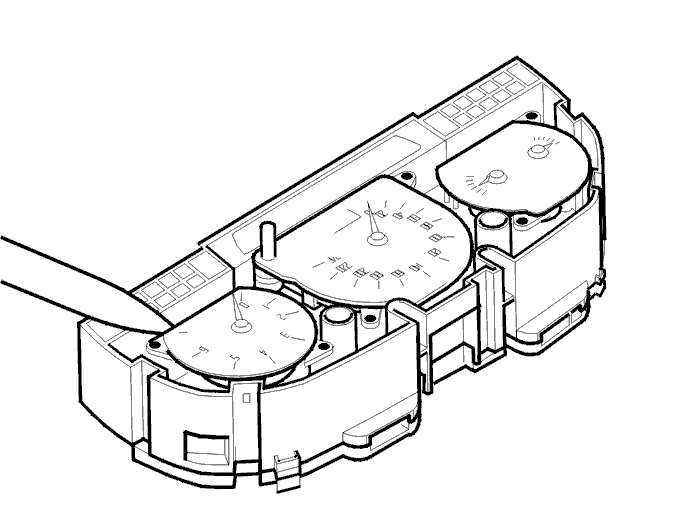

Fig 2: Prying Up Tachometer, Temperature Gauge, Fuel Gauge And Speedometer Using Weatherstrip Tool

Courtesy of VOLVO CARS OF NORTH AMERICA.

Carefully pry up and release the tachometer, temperature gauge, fuel gauge and speedometer using a weatherstrip tool.
