Replacing Tachometer, Temperature Gauge, Fuel Gauge And Speedometer: Installation

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

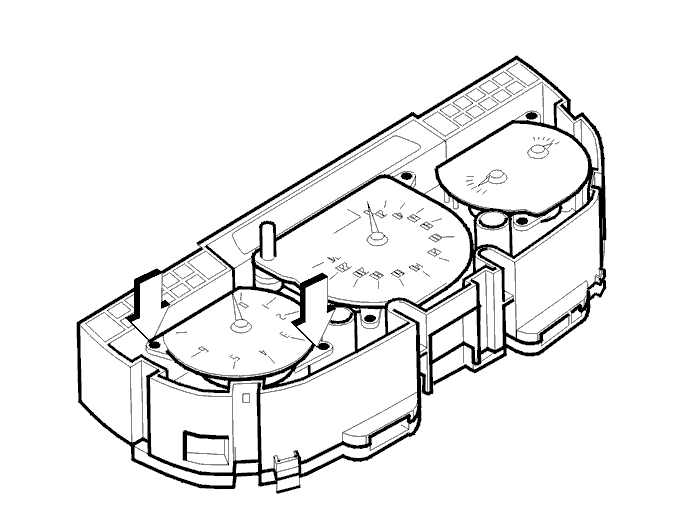

Fig 1: Identifying Tachometer, Temperature Gauge, Fuel Gauge And Speedometer

Courtesy of VOLVO CARS OF NORTH AMERICA.

Position gauges on their guides and press into place.
NOTE: Press the trip odometer/odometer reset button into place.

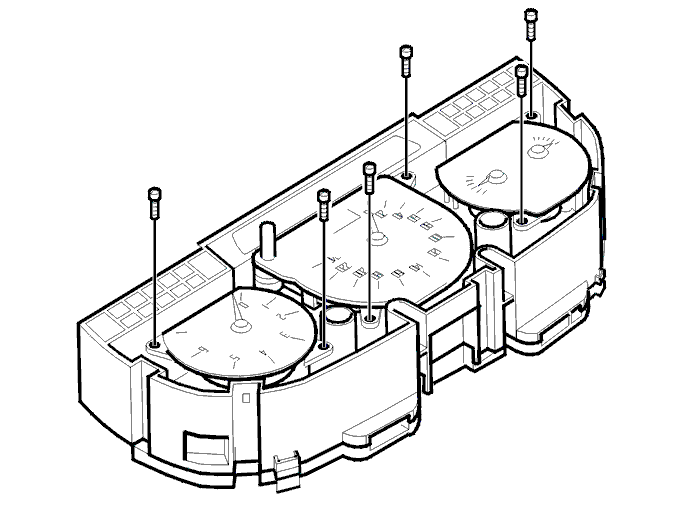

Fig 2: Identifying Screws For Tachometer, Temperature Gauge, Fuel Gauge And Speedometer

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

screws.
instrument housing according to Replacing Instrument Housing .
