Fitting rear adjusting screw

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

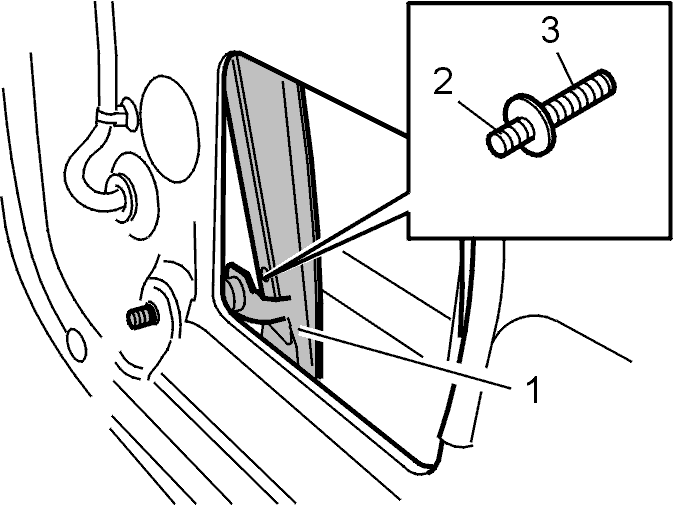

Fig 1: Identifying Adjuster Screw, Short Part Of Screw, And Window Frame

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press the window frame in the door (1) against the door outer panel.

Insert the short part of the adjusting screw (2) in the outer door skin.

Screw in the long part of the adjuster screw (3) in the window frame in the door. Screw it in the same number of turns as noted when removing or to the measurement you noted when removing. See stage Measuring distance
