Fitting lock mechanism
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

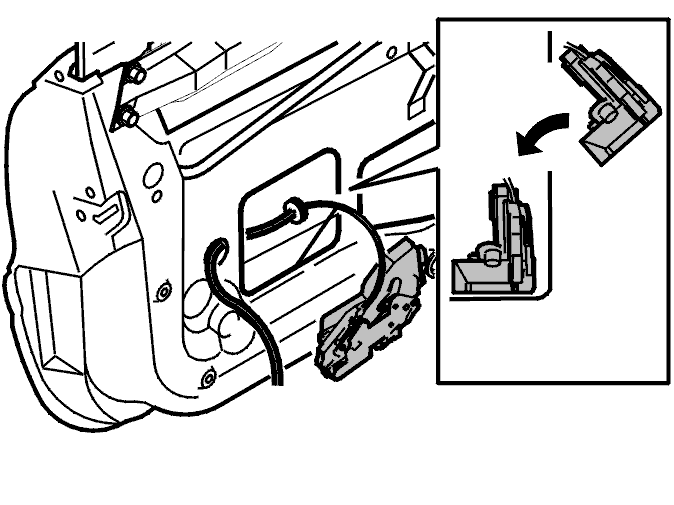

Fit the wire and its rubber grommet in the door. Be careful not to damage the wire sheathing.
Rotate the lock mechanism opposite the opening in the door round the bottom part of the window cassette.
Lift the lock mechanism into place.
