Fitting lock cylinder on driver side (earlier version)

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

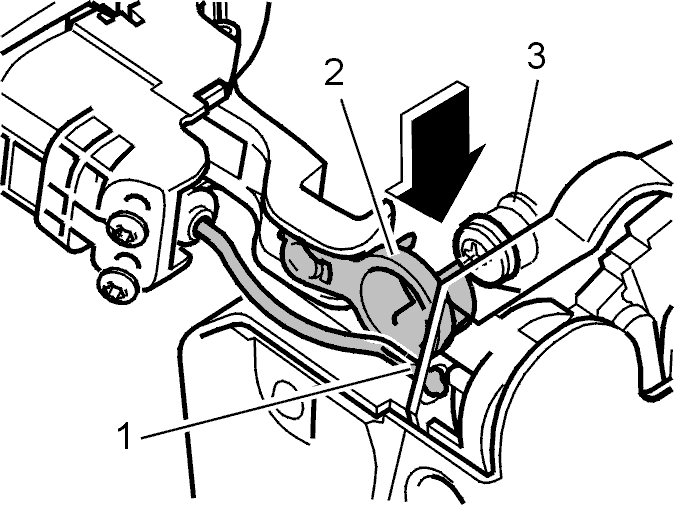

Fig 1: Identifying Lock Mechanism Element, Link, And Locking Pin
GLL102267Courtesy of VOLVO CARS OF NORTH AMERICA.

Check that the hole in the lock mechanism intended for the locking pin is correctly positioned.

Fit the lock cylinder and insert the locking pin (1) in the locking mechanism.

Check that the lock cylinder is fitted firmly and correctly in place.

Fit the cover over the lock cylinder.
