Fitting foam plastic

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

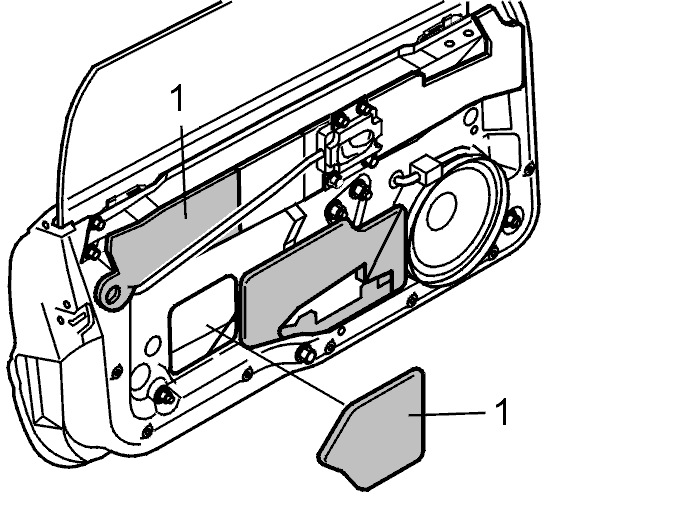

Fig 1: Identifying Foam Plastic
GLL102270Courtesy of VOLVO CARS OF NORTH AMERICA.

Fresh adhesive may be needed if the old foam plastic can be used. In such case use adhesive having part number 1161095.

New foam plastic must be used if the old foam plastic is damaged. Damaged foam plastic must not  be reused.
