Detaching lead

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

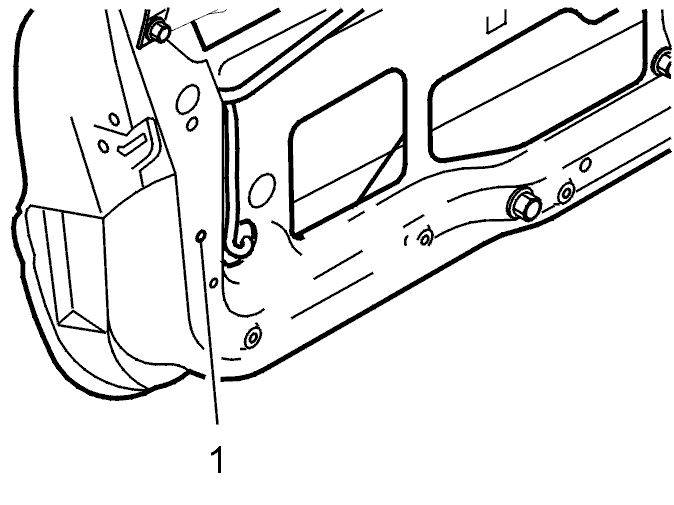

Fig 1: Locating Clip
GLL102280Courtesy of VOLVO CARS OF NORTH AMERICA.

Detach the lead from the outer door skin.

Pinch the clip (1) together and press it into the door.
