Install the electric motor.
Run the motor to the tilt position.
Install the sun roof in the mounting brackets and press it forwards until it locks.
Install a screw on each side.
Close the sun roof.
Install the front screws.
Adjustment

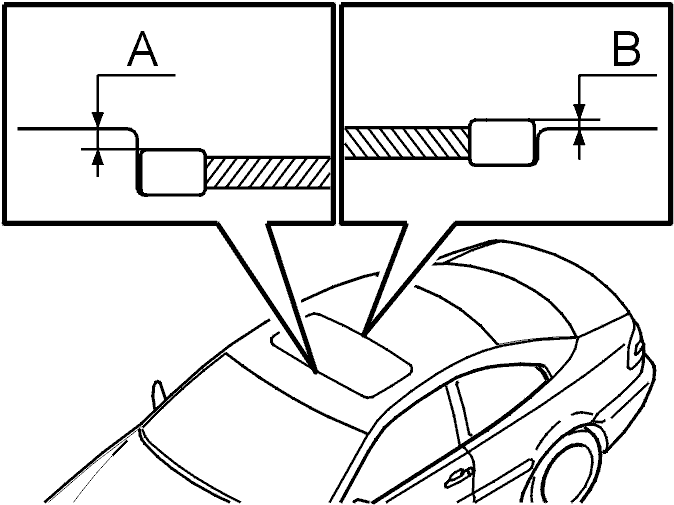

The sun roof weatherstrip should be 0.5 mm under the roof panel at its front edge according to (A) and 0.5 mm above it at its rear edge according to (B).
Adjust:
- the front edge front-rear / vertically
- the rear edge vertically.
Check that the sun roof is adjusted equally on both sides.
Test the sun roof function by opening and closing it to both limit positions.
