Replacing dashboard and tunnel compartment switches: Removing

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

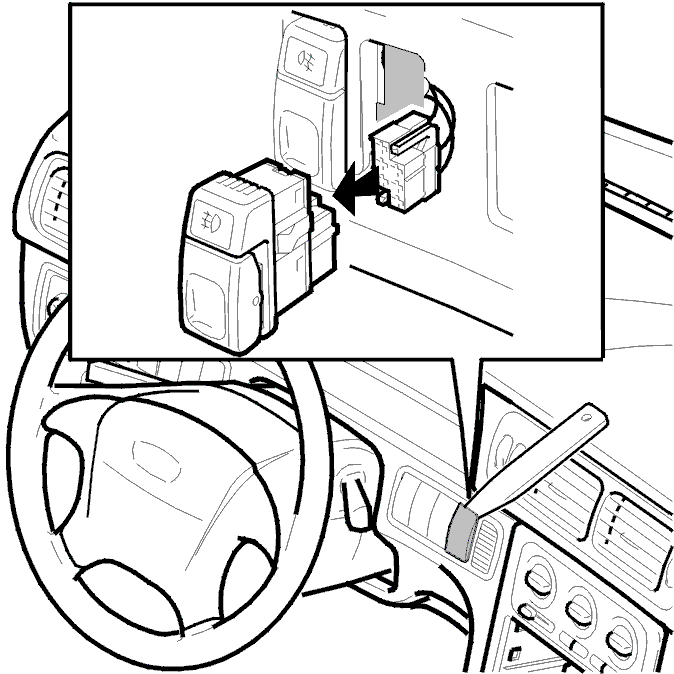

Fig 1: Removing Dashboard Switches
GLL124978Courtesy of VOLVO CARS OF NORTH AMERICA.

Ignition off.

Carefully insert a screwdriver or weatherstrip tool between the panel and the top of the rocker switch. Carefully pry outwards until the switch can be gripped with the fingers. Pull out the switch.

NOTE:

Put something between the screwdriver and the surrounding panel so as not to damage it.

Disconnect connector.

NOTE:

The hazard warning signal flasher switch is located under the radio and is replaced in the same way as the other switches.
