Replacing rear door switch
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
The switch may be replaced without removing the door panel.

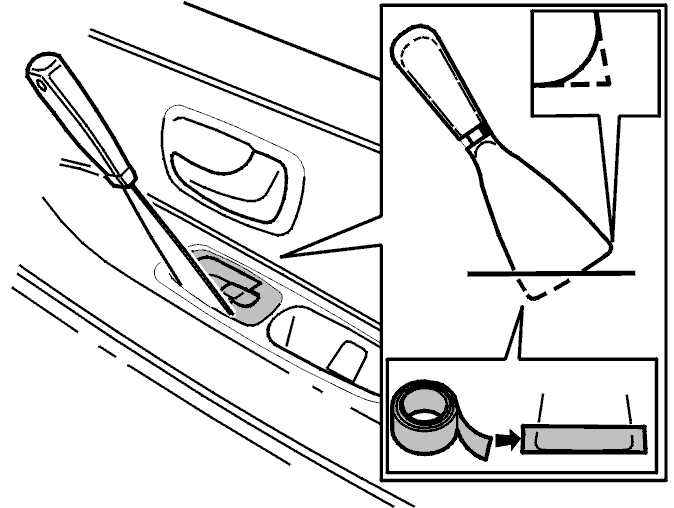

Modify a spatula by rounding its corners and edges. This is done to minimize the risk of damage to the frame around the switch.
Position a 75 mm / 3 in piece of electrical tape on the spatula to protect the gap between the switch and the frame.
Move the spatula down between the switch and its frame, as shown in the figure, and carefully force out the switch.
It is important to use a wide contact surface on the tool to avoid damage to the frame around the switch.
Replace the switch.
3) Filler hatch/Boot lid (front door only)
- Remove the door panel as described in Removal of door panel .
- Give the switch a functional test.
- Remove the switch from the panel.
- Give the switch a functional test.
- Remove the connector connected to the switch.
- Give the switch a functional test.
- Replace the switch.
- Give the switch a functional test.
Assemble in reverse order
