Removal And Installation

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

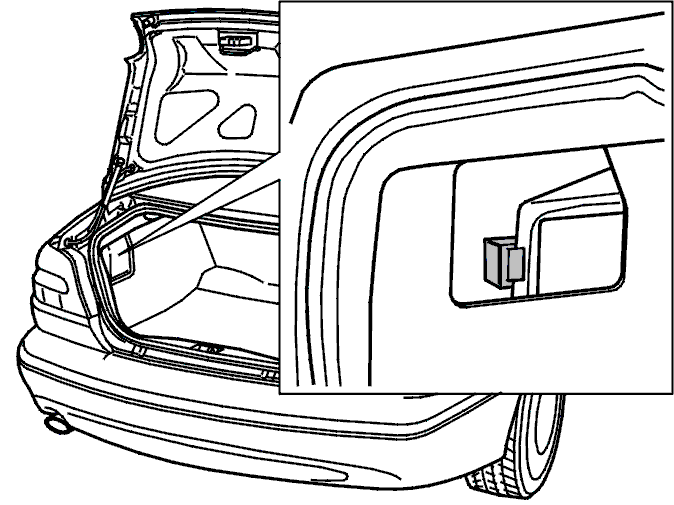

Fig 1: View Of Cargo Compartment

Courtesy of VOLVO CARS OF NORTH AMERICA.

The bulb failure warning sensor for the rear lighting is located in the cargo compartment behind the box containing the cargo compartment lighting.

Ignition off.

Remove:

the box with the cargo compartment lighting.
pull the bulb failure warning sensor backwards.

Disconnect the connector.

Replace the bulb failure warning sensor.

Assemble in reverse order.

Test the bulb failure warning sensor function.
