Replacing antenna ring: Removal

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

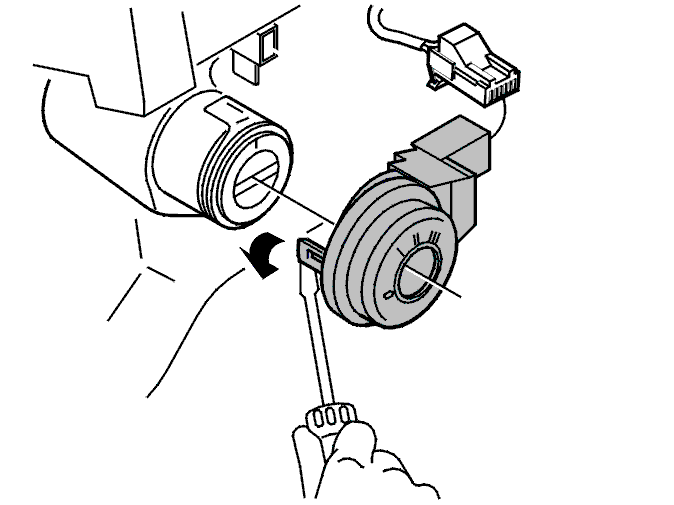

Fig 1: Prying Out Antenna Ring Catch With Screwdriver

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

lower steering wheel cover.

Carefully pry out the antenna ring catch with a screwdriver and pull out the antenna ring.

Remove:

antenna ring connector.

CAUTION:

Be careful not to damage the cable to the airbag module when releasing the antenna ring catch.
