Replacing brake and clutch valves: Removing

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

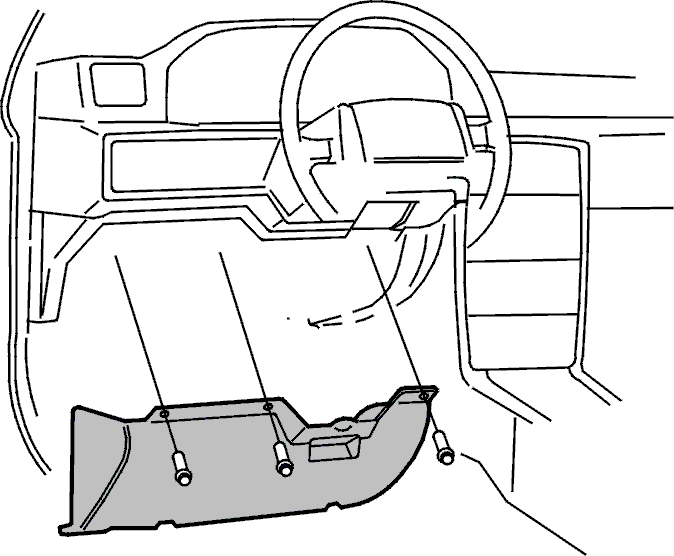

Fig 1: Identifying Soundproofing Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Ignition off.
Remove soundproofing panel on driver's side.
Carefully remove brake/clutch valve from bracket.
Disassemble connector and disconnect vacuum hose from brake/clutch valve.
