Checking the idle air control (IAC) valve control slide
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
- Ignition off.
- Remove idle air control (IAC) valve.CAUTION:
Under no circumstances touch the control slide with a screwdriver or other tools as this could scratch and damage the control slide.

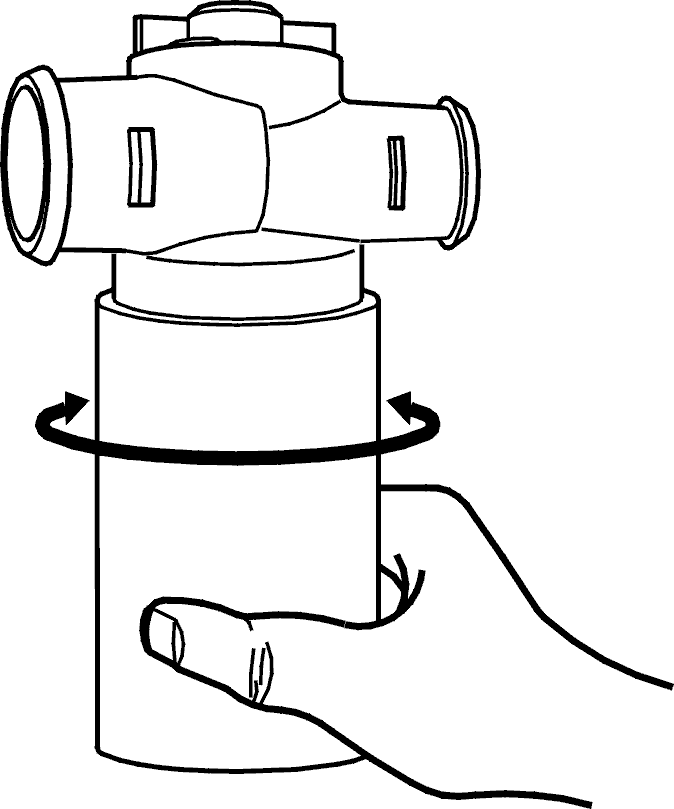

- Hold the valve by the connector and twist it quickly but carefully back and forth.
The control slide should switch.
- OK
Refer to Cleaning and greasing connectors
- NOT OK
