Checking ignition cables

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Ignition Switch OFF Position

Courtesy of VOLVO CARS OF NORTH AMERICA.

Ignition off.
Remove all ignition cables.

Fig 2: Identifying Ohmmeter
Courtesy of VOLVO CARS OF NORTH AMERICA.
- Check the distributor cap, rotor and ignition cables for of arcing damage, cracking and dirt.
- Measure the resistance in each ignition cable
  Resistance should be 1.81 - 5.46 kΩ depending on length, at +20°C.
- Replace ignition cables that are damaged or that have incorrect resistance.
- Check that there are no loose connections between the ignition cables and distributor cap and between the ignition cables and spark plugs.

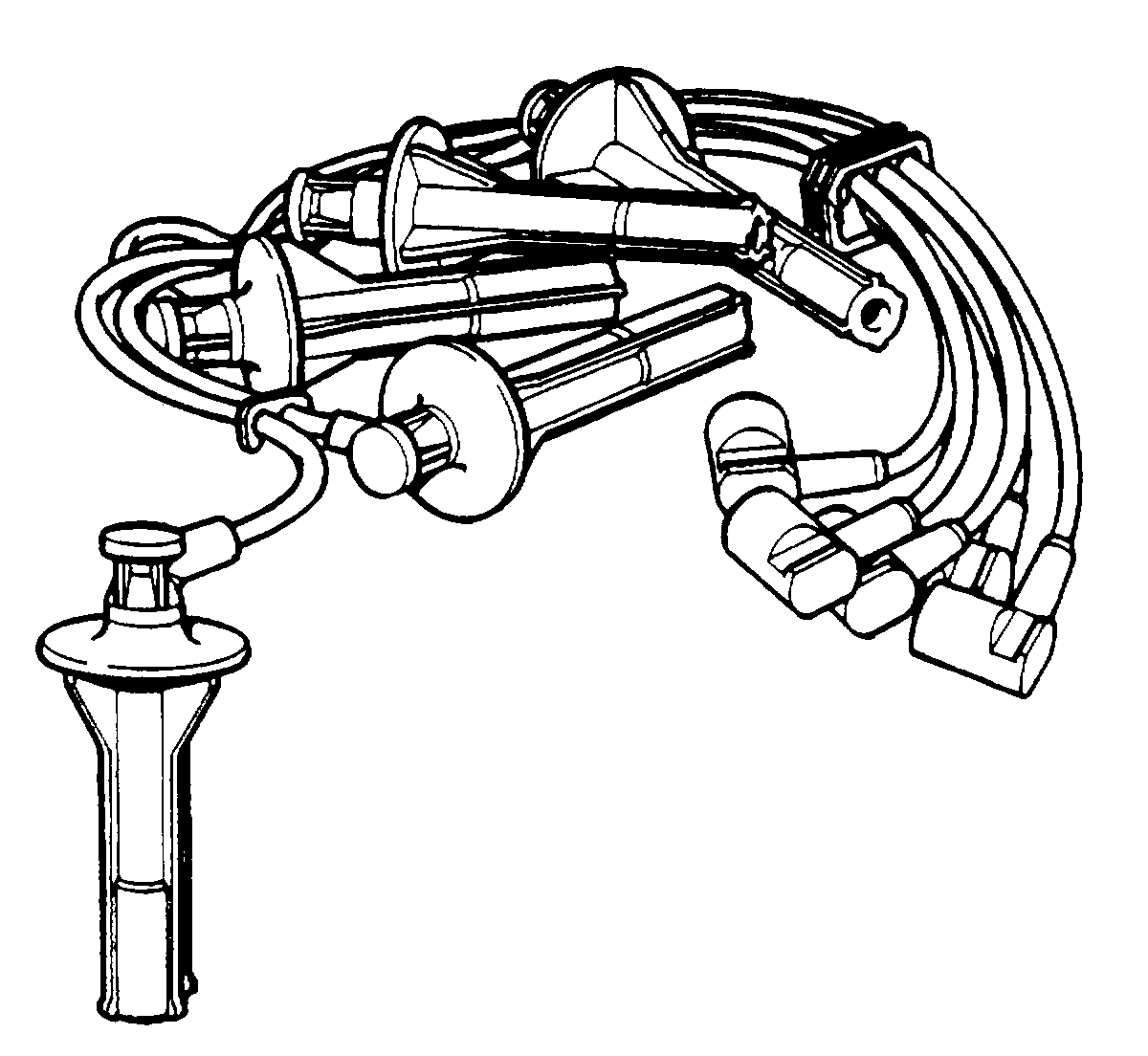

Fig 3: Identifying Ignition Cables
Courtesy of VOLVO CARS OF NORTH AMERICA.

Continue when the fault has been repaired.

Continue
Refer to Checking distributor cap and rotor
