Connecting breakout box to Motronic 4.4 connector B (gray)
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
- Ignition off.
- Disconnect control module.NOTE:
The engine control module (ECM) must not be removed from the car until the main relay has interrupted its power supply. This may take up to 150 seconds (cars with an immobilizer 245 seconds) after the ignition has been switched off.

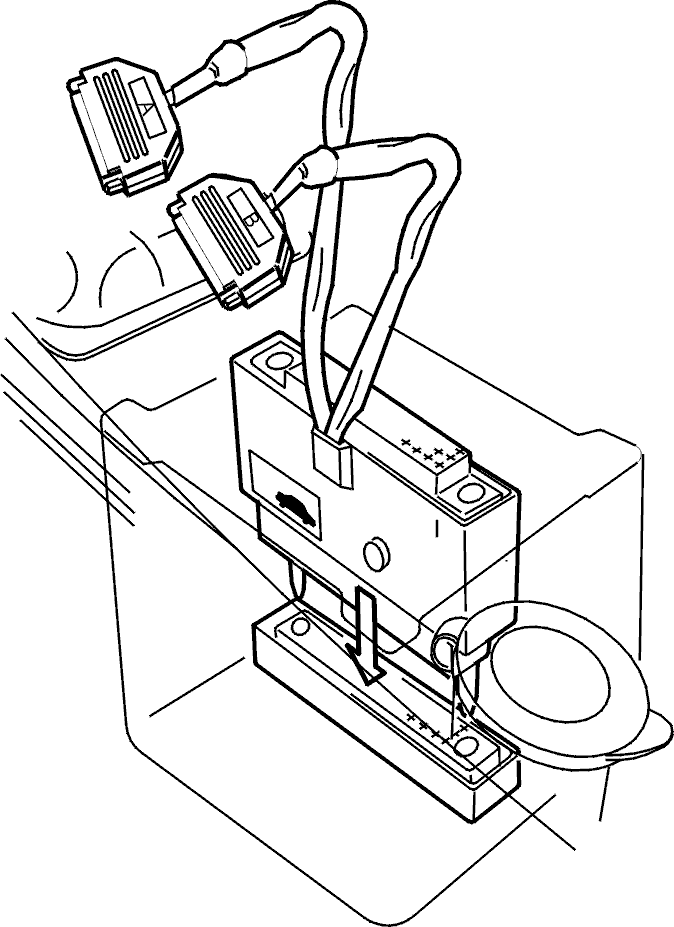

Connect adapter 9511351 to engine control module (ECM) connector and connect breakout box 9813190 to adapter.
- Continue
Refer to Checking ground terminal #B28
