Removing the connectors

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Fuel Filler Pipe Ground Lead From Nut On Fuel Tank Level Sensor Cover

Courtesy of VOLVO CARS OF NORTH AMERICA.

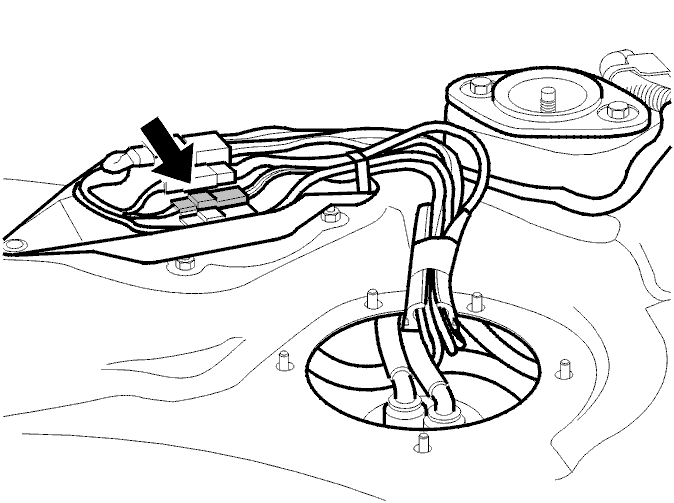

Fig 2: Identifying Connectors On Bracket

Courtesy of VOLVO CARS OF NORTH AMERICA.

Separate all connectors that are mounted in the bracket.
Remove the rubber bracket that is fitted around the electric cables.
Make sure that the cables that go through the hole at the fuel pump fitting are free and can follow the tank when it is lowered later.
