Marking With Tape
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

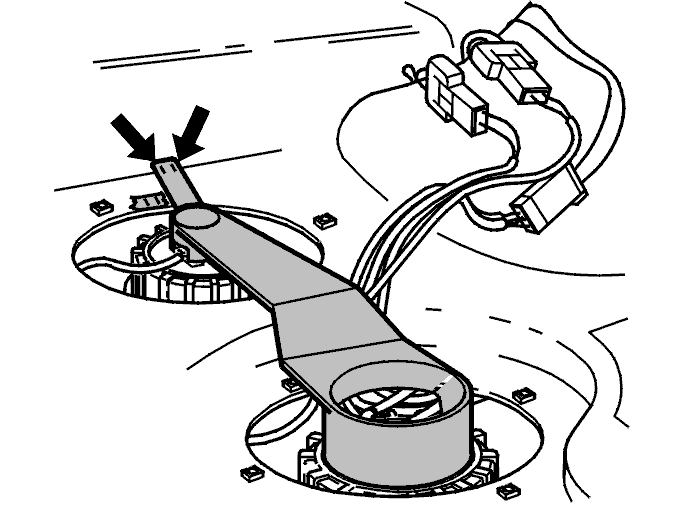

Before the old fuel level sensor is removed, a gauge should be placed as shown in the illustration.
Use gauge, part number 9463238.
Place a piece of tape on the body under the gauge openings, see arrows.
Mark the tape by looking through the openings of the gauge.
