Fixing the Fuel Level Sensor

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Fuel Level Sensor

Courtesy of VOLVO CARS OF NORTH AMERICA.

Align the fuel level sensor as in the illustration.

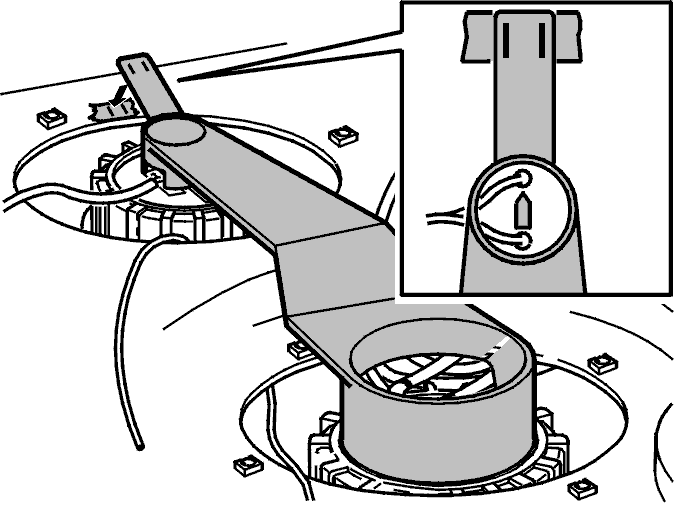

Fig 2: Identifying Fuel Level Sensor With Gauge

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fit the nut and tighten to a torque of 30 Nm.

Use gauge, part number 9463238.

Check the installation of the fuel level sensor with a gauge, as in the illustration.
