Fitting a New Fuel Level Sensor
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

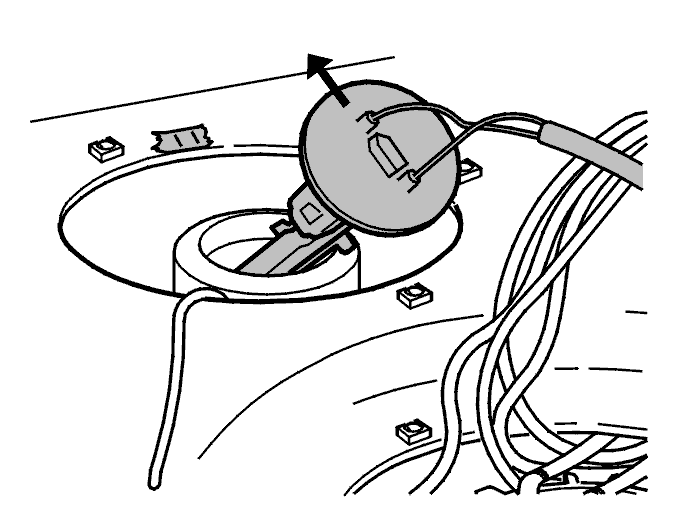

The fuel level sensor's arrow marking should point between the markings on the tape.
Fit a new gasket for the fuel level sensor
Lubricate the sliding surface of the nut on the fuel level sensor so as to avoid the fuel level sensor turning when the nut is tightened. Use Vaseline or the like.
Carefully lower the new fuel level sensor into place.
