Removing the Fuel Pump Fitting

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

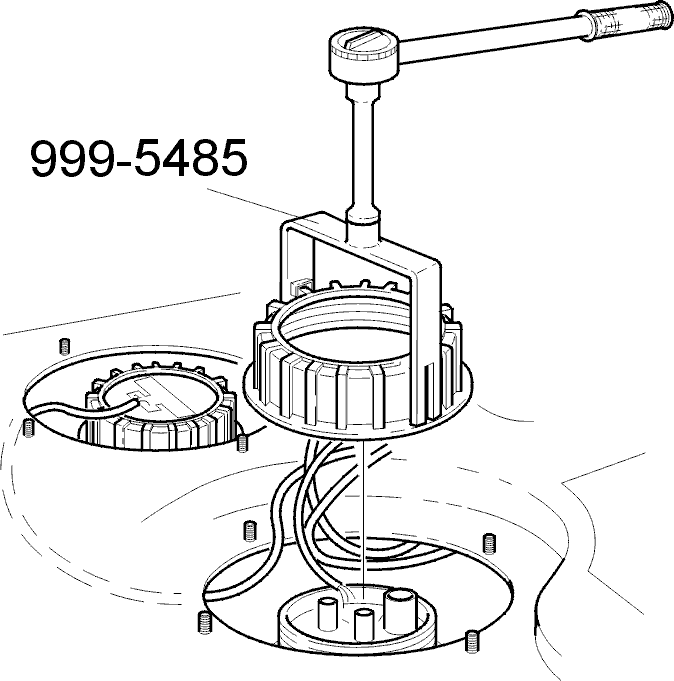

Fig 1: Identifying Wrench

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the nut of the fuel pump fitting.

Use wrench 9995485 .

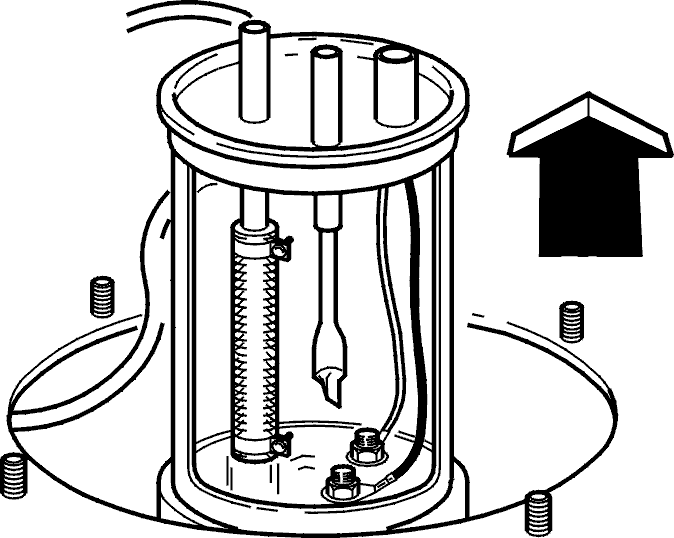

Fig 2: Identifying Pump Unit And Rubber Seal

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the pump unit.
Remove the rubber seal.

CAUTION: Lift straight up. Do not use pliers or sharp objects on the pipe connections. There is a risk of fuel leakage.

CAUTION: Refit the nut on the tank casing. Otherwise, the neck will swell and it will be difficult to fit the nut later.
