Mounting the Fuel Pump Fitting
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
Use a new dry gasket, no. 3531426-9. Make sure it is fitted correctly. Lubricate the top plane surface of the inside the narrow outer edge with a thick layer of Vaseline.
Lubricate the top edge of the rubber seal so that it does not rub against the nut.

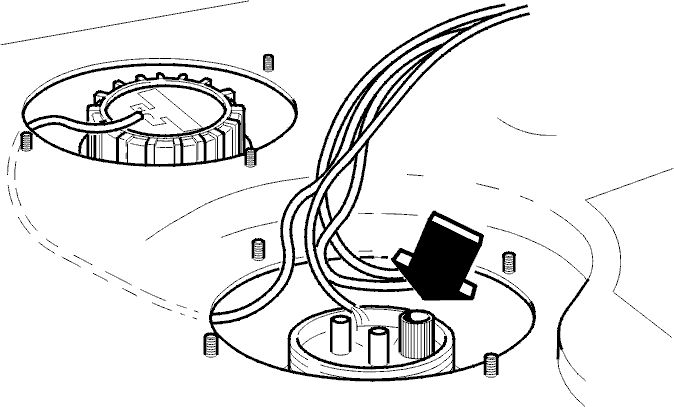

The fuel pump fitting should be fitted with the connection for the heater to the right, see arrow.
NOTE:
If the fuel pump fitting is incorrectly mounted, there is a risk of breakdown.
- Mount the fuel pump fitting.
