Fitting the Hoses

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

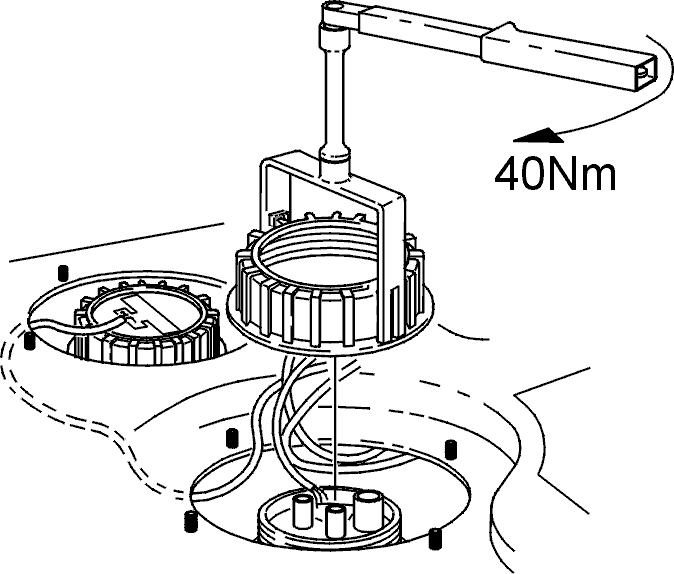

Fig 1: Identifying Tool 9995485

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fit the nut on the fuel pump fitting and tighten to 40 Nm with tool 9995485 .

Lightly grease the feed and return connections with Vaseline.

Fit the feed and return lines to the fuel pump fitting. The feed line is marked with yellow, corresponding to the marking on the pump flange.

Fit the couplings straight and press down to the pump's plane surface. Be careful not to damage any O-rings.

NOTE: Ensure that the lines are correctly positioned.

Connect the cable harness.

Fit the panels and mats.
