Relay in engine compartment central electrical unit, replacement: Removal

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

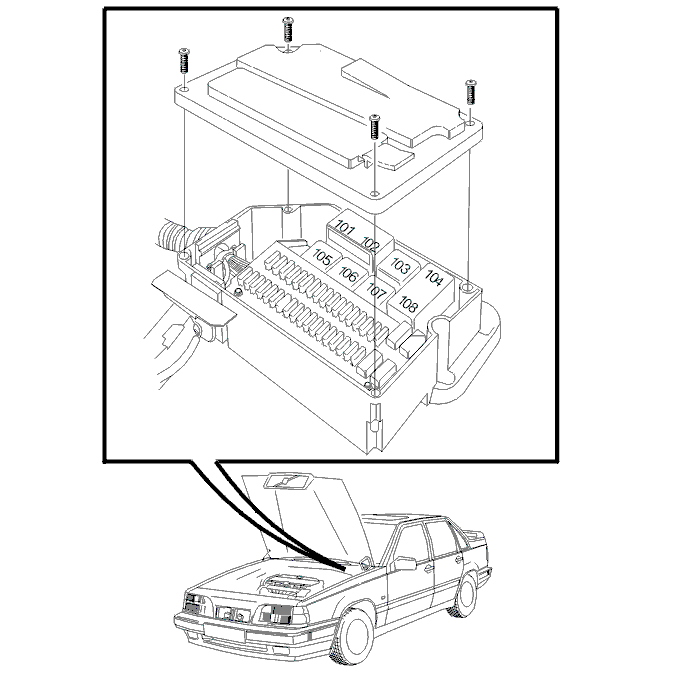

Fig 1: Identifying Fuse/Relay Box (Central Electrical Unit) In Engine Compartment

Courtesy of VOLVO CARS OF NORTH AMERICA.

The central electrical unit is located by the cowl panel on the left or right depending on the model. The engine compartment central electrical unit is located under a cover.

Remove:

the screws for the cover
the cover.
